Panimula :

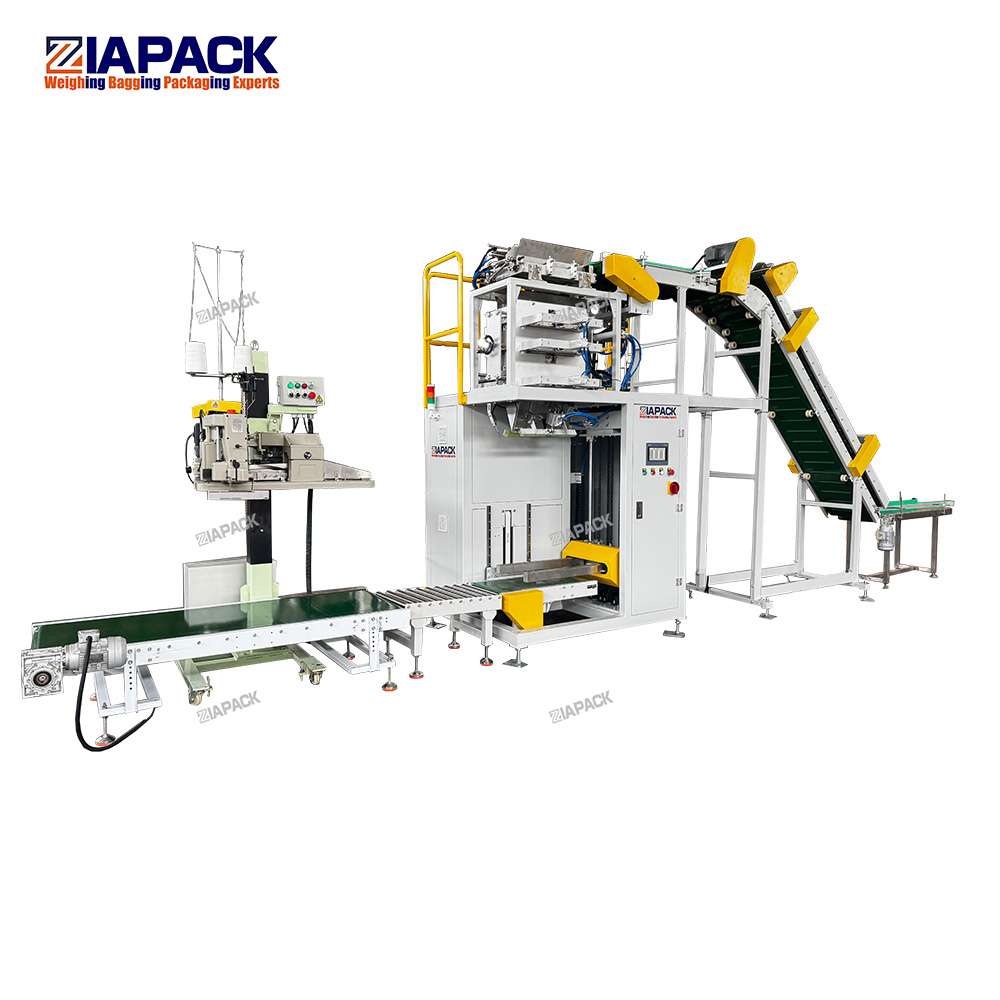

Semi-automatic secondary packaging unit that automatically puts the products output by the primary vertical packaging machine into woven bags ,but need people feed Pp woven bag by manual. This unit mainly completes the automatic packaging process of neatly putting the packaged bagged products into bags and China famous branding them out of bags as required, and realizes automatic filling of small bags into bags, thereby saving manpower, material resources and financial resources, reducing production costs and improving production efficiency. This unit is widely used in powder and granular industries such as washing powder, salt, sugar, seed milk powder, etc., and is the preferred equipment for customers.
Advantages :
1 This packing unit can realize counting filling moving output China famous brand ing fully automatically
2 The unit is operated through the touch screen operation specifications change maintenance are very convenient safe and reliable .
3 Can be arranged to achieve a variety of forms to meet different needs of customers
Packing form : Different packing form need different packing machine unit
Proseso ng produksyon:
For secondary packaging (auto putting the small pouches into PP woven bag):
Horizontal conveyor belt for collecting the finished sachets → slope arrangement conveyor will make the sachets flat before counting → Acceleration belt conveyor will make the adjacent sachets leaving enough distance for counting → counting and arranging machine will arrange the small sachets as requirement → the small sachets will load into the bagging machine → bagging machine seal and cut the big bag → belt conveyor will take the big bag under the packaging machine.
Pangunahing teknikal na mga parameter:
| Saklaw ng packaging | 1-5kg /250g-1kg |
| Mga Materyales sa Pakete | PP woven bag |
| Pag-iimpake ng bilis: | 4-6big bags/min 35-120pouches /min |
| Kapangyarihan: | 5.5Kw 380V±10% 50Hz |
| Compressed air: | 0.6MPa |
