Panimula: This unit machine is special design for packaging pellets tea into small pillow bag with tiny weight .With function of tea pellets feeding,weighing, Automatic bag forming sealing and output .The main machine has function of bag counting and date coding .

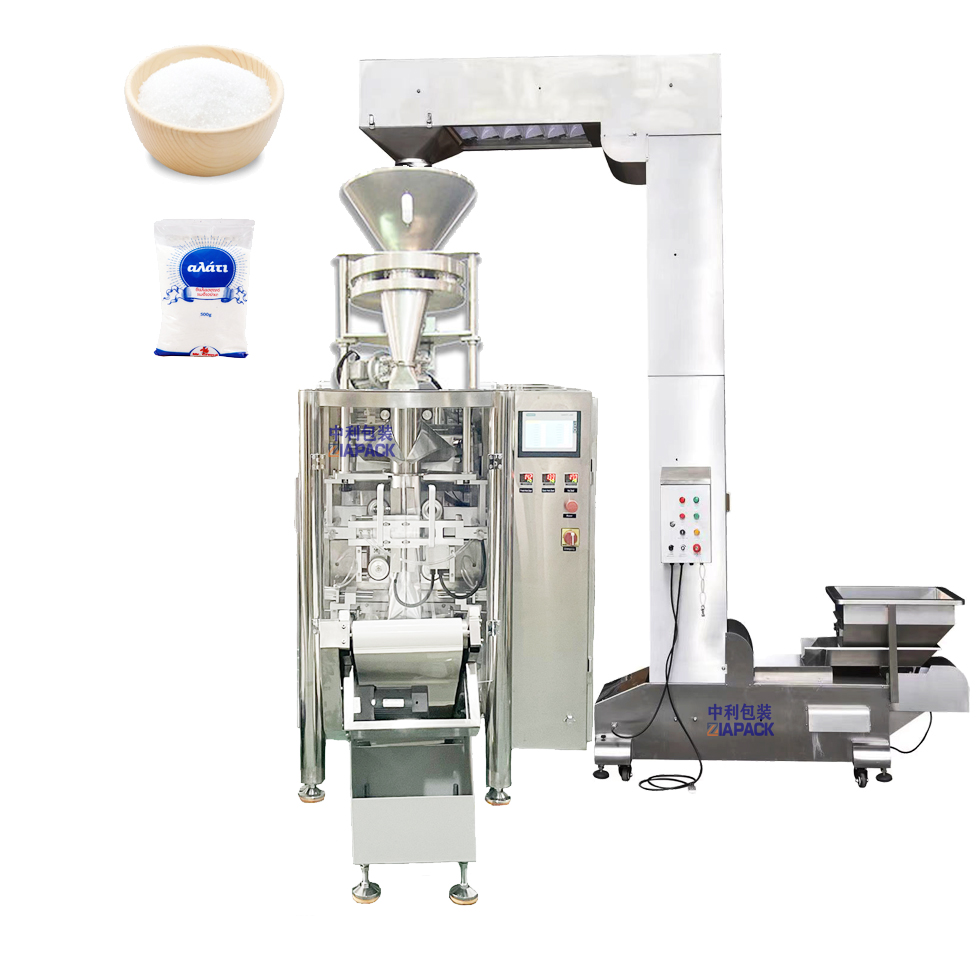

ZL320 Vertical bag forming filling sealing packaging machine
The whole machine frame made by Stainless Steel 304, All Material contact part made by SUS304 .This machine equipped with bag-making, cutting, code printing , bag counting ,bag sealing and bag dropping .According client requirement can add bag pressing ,make gusseted bag ,making flat bottom bag etc.Adopt SIEMENS PLC and Touch Screen，Panasonic servo motor, Japanese Photo Sensor , SMC electromagnetic valve . The machine performance is stable .It is a best choice for improve the automation of modern factory .
Teknikal Parameter:
Weighing Range:10-500gram
Packaging Speed:30-60bags/min
Bag size: (80-220)*(60-150)mm(L*W)
Film roller width :320mm
kinakailangan sa hangin: 0.6Mpa 0.65m³/min
outer diameter: 300mm
panloob na diameter: 75mm
inner weight: 300kg
Power source: 3.5kW 380V±10% 50Hz
Pangunahing Katangian at Katangian
Isang malawak na hanay ng mga pouch: pillow bag, Maaaring gumawa ng gusseted bag, flat bottom bag sa pamamagitan ng change device
Mataas na bilis: Higit sa 20-60 bags/min
Madaling patakbuhin: PLC controller at color touch-screen, fault indication sa touch screen.
Madaling ayusin: lamang tungkol sa 10 minuto upang baguhin ang iba't ibang mga pouches.
Pagkontrol ng dalas: maaaring iakma ang bilis ng conversion ng dalas sa hanay.
Mataas na Automation: hindi pinuno ng tao sa pagtimbang at packing proseso, awtomatikong makina alarma kapag kabiguan.
Kaligtasan at Kalinisan
Walang pelikula, mag-aalarma ang makina.
Ang alarma ng makina at itigil kapag ang hindi sapat na presyon ng hangin.
Mga tagapangalaga ng kaligtasan na may kaligtasan-switch, alarma machine at itigil kapag ang mga kaligtasan guards ay binuksan.
Kalinisan konstruksiyon, ang produkto contact bahagi ay pinagtibay sus304 hindi kinakalawang na asero
