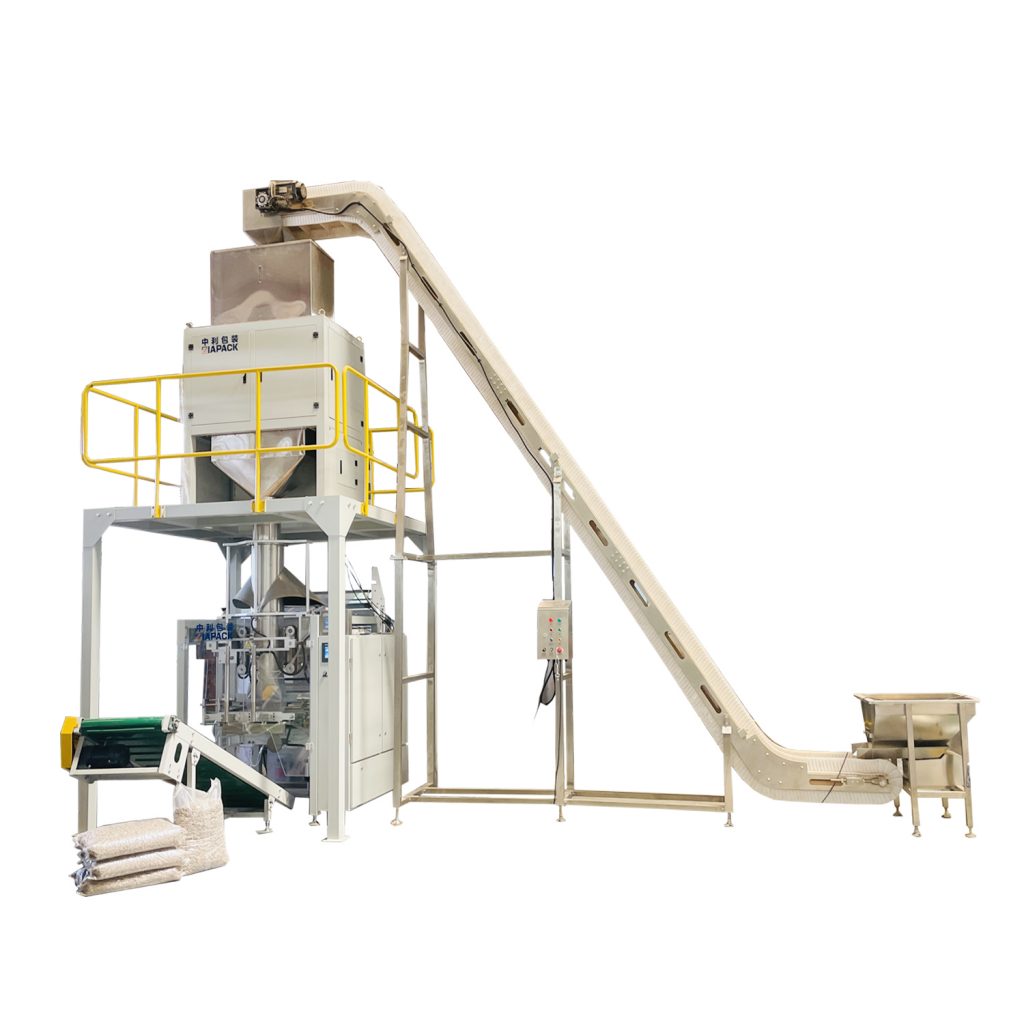

15kg wooden pellets vffs bag na bumubuo ng filling sealing bagging machine

Automatic15-20 kg wooden pellets bag forming filling packaging machine

Panimula:

This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .

Teknikal Parameter:

Weighing Range: 1kg-5kg

Packaging Speed:12-30 bags/min

Bag size: (150-420)*(120-350)mm(L*W)

Max film width:720mm

Kinakailangan ng naka-compress na hangin: 0.6Mpa 0.65m³/min

Reel outer diameter: 450mm

Core panloob na diameter: 75mm

Machine weight: 950kg

Power source: 6.5kW 380V±10% 50Hz

Pangunahing Katangian at Katangian:

• Isang malawak na hanay ng mga pouch: Pillow at Gusset pouch.
• Mataas na bilis: 20-50 bags/min
• Madaling patakbuhin: PLC controller at color touch-screen, fault indication sa touch screen.
• Madaling ayusin: lamang tungkol sa 10 minuto upang baguhin ang iba't ibang mga pouches.
• Pagkontrol ng dalas: maaaring iakma ang bilis ng conversion ng dalas sa hanay.
• Mataas na Automation: hindi pinuno ng tao sa pagtimbang at packing proseso, awtomatikong makina alarma kapag kabiguan.
• Kaligtasan at Kalinisan:
• Walang pelikula, mag-aalarma ang makina.
• Ang alarma ng makina at itigil kapag ang hindi sapat na presyon ng hangin.
• Mga tagapangalaga ng kaligtasan na may kaligtasan-switch, alarma machine at itigil kapag ang mga kaligtasan guards ay binuksan.
• Hygienic construction, the product contact parts are adopted sus316stainless steel.

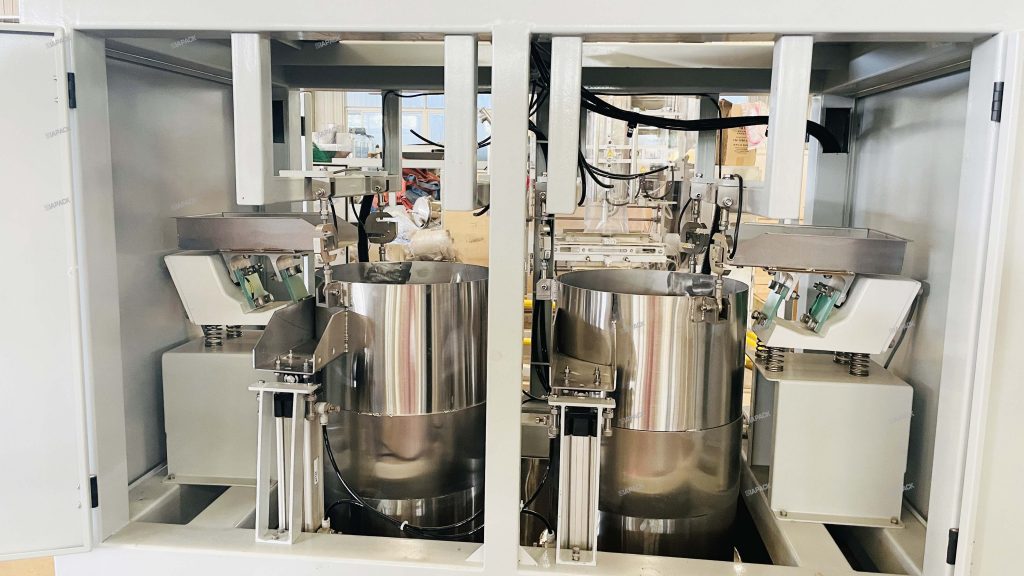

• ZLC2-15k double bucket weighing machine

  Panimula:

  This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food

  Mga Tampok:

  1. 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
  2. SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
  3. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
  4. Amplitude can be automatically adjusted for easy operation.
  5. Each hopper can be used as single weigher.
  6. 6. With cylinder controlfor door open-close control , which is faster and more stable.
  7. 7. Modular control system for easy maintenance and cost-saving.

  Parameter:

  Weighing range :10-15kg

  Accuracy :±0.5-0.8%

  Min scale :0.1gram

  Max speed :20-40bag/min

  HIM:7” touch screen

  Power supply :AC220±10% 50HZ /60HZ 1KW
