Panimula:

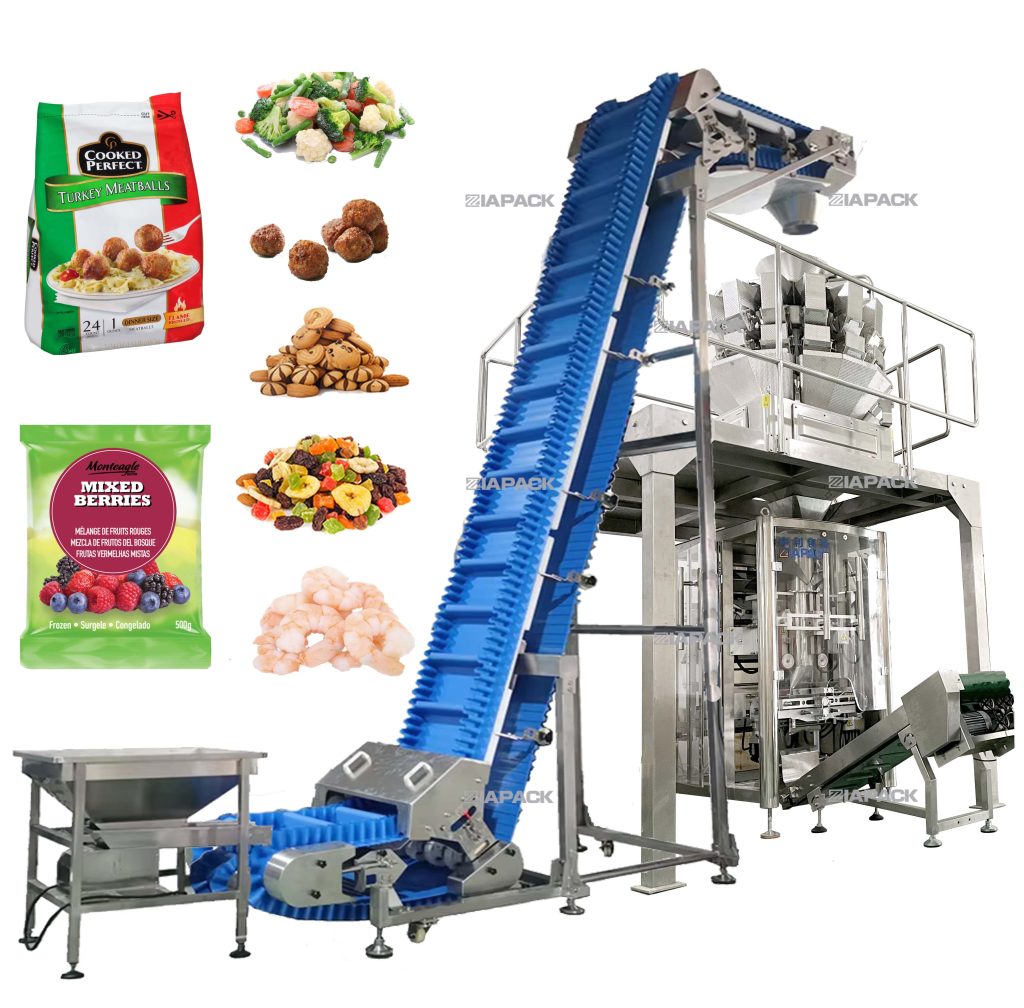

This unit machine is special design for packaging frozen food like shrimp ,meat ball,Chicken pieces dumpling and Toufu in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
Application:

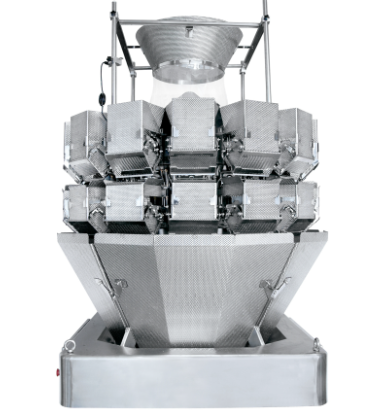

This weighting machine r is suitable for weighing different frozen food like frozen fishes, fruit, frozen dumplings, rice dumplings, etc.,Adopt Dimple Plate and waterproof electric cabinet .Can Work in an environment with high humidity.
Mga Tampok:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Mechanical Character:
- Ip65 cabinet design, dimple plate for food contact parts.
- Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
- Uniform design standards contribute to better interchangeability for spare parts.
- The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
- Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.
Mga pagtutukoy:
Modelo | ZL14-2.5L |
Max. Max.Cap.(g) | 100-1500g |
Pagtimbang Katumpakan | 0.1-0.2% |
Weighing speed | 20-60WPM |
Kapasidad ng Hopper | 2.5L |
Sistema ng kontrol | MCU |
Operation Panel | 7 inch touch screen |
Power Supply | AC220V ±10% ,50Hz(60Hz)1.5KW |
Kabuuang timbang | 850kg |
ZL520 VFFS BAG FORMING FILLING PACKAGING MACHINE
Panimula:
Ang makinang ito ay maaaring awtomatikong mapagtanto ang mga function ng paggawa ng bag, pagpuno, pagbubuklod, pag-print, paggupit, atbp. Ang makinang ito ay maaaring awtomatikong maabot ang bag na bumubuo ng pagpuno at pagbubuklod.
Ang packaging machine na ito ay gumagamit ng import servo motor para sa film feed at ang man-machine interface ay gumagamit ng advanced touch screen. Ang operasyon ay mas simple at mas maginhawa. Ang lahat ng mga bahagi ay gumagamit ng internasyonal na sikat na tatak, ang PLC ay SIEMENS, servo motor ay PANASONIC, touch screen ay SIEMENS, cylinder at air valve ay SMC. Ang mga bahaging nakakadikit sa materyal 、control cabinet 、main frame ay gawa sa hindi kinakalawang na asero304
Teknikal Parameter:
Bilis ng pag-pack (MAX): 20-50bags/min
Uri ng bag: pillow bag .gusseted bag
Bag size: bag width 60-250mm bag length 80-350mm
Pagkonsumo ng naka-compress na hangin: 0.6 MPa 350 L/min
Kinakailangan ng kuryente: 380V/5.5 kW50 Hz
