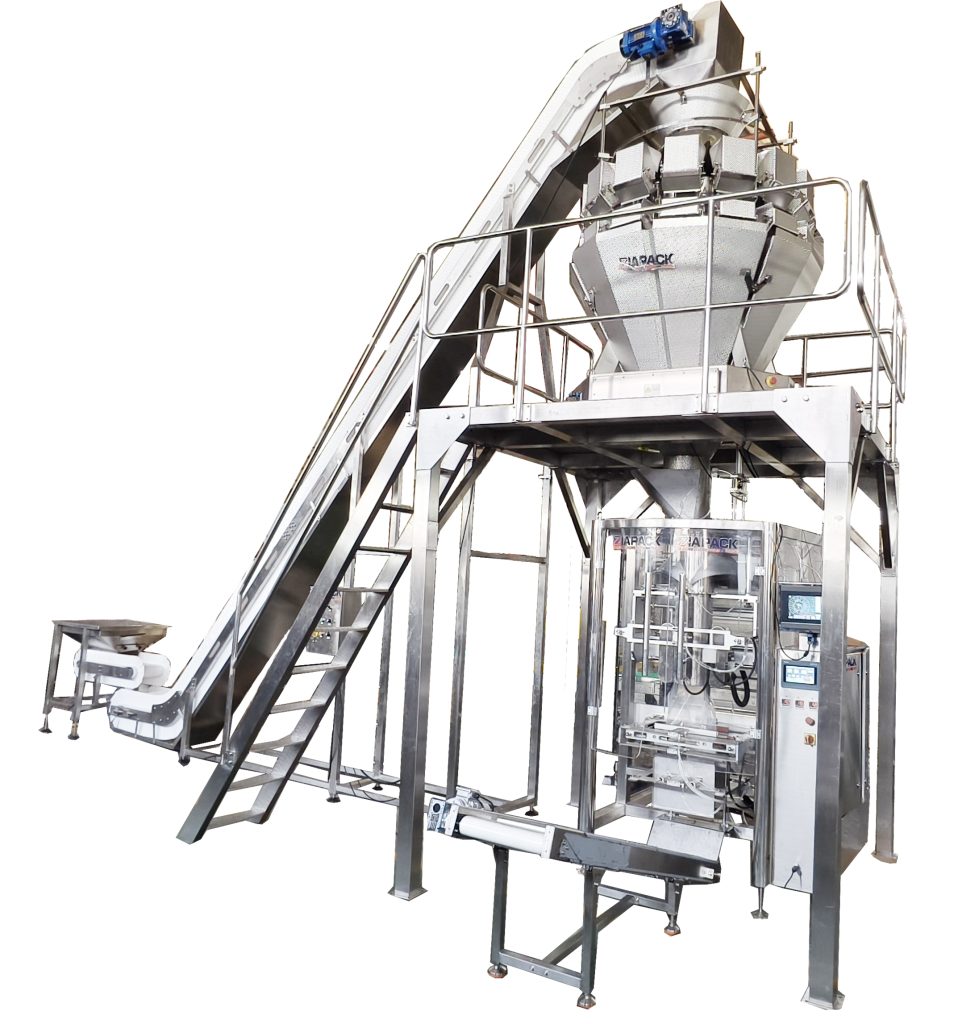

This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
Application:
It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
Mga Tampok:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Panimula:
Ang makinang ito ay maaaring awtomatikong mapagtanto ang mga function ng paggawa ng bag, pagpuno, pagbubuklod, pag-print, paggupit, atbp. Ang makinang ito ay maaaring awtomatikong maabot ang bag na bumubuo ng pagpuno at pagbubuklod.
Ang packaging machine na ito ay gumagamit ng import servo motor para sa film feed at ang man-machine interface ay gumagamit ng advanced touch screen. Ang operasyon ay mas simple at mas maginhawa. Ang lahat ng mga bahagi ay gumagamit ng internasyonal na sikat na tatak, ang PLC ay SIEMENS, servo motor ay PANASONIC, touch screen ay SIEMENS, cylinder at air valve ay SMC. Ang mga bahaging nakakadikit sa materyal 、control cabinet 、main frame ay gawa sa hindi kinakalawang na asero304
Teknikal Parameter:
| Modelo | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| Haba ng bag | 150-480mm by secondary film pulling the bag length can be longer |
| Lapad ng bag | 120-375mm(Side width +front width ) |
| Lapad ng pelikula | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| Kapangyarihan | 6KW 380V±10% 50Hz |
| Laki ng makina | 1650*1500*1750mm |
| Ang timbang ng machine | 650kg |
